鋼絲繩電動葫蘆
環鏈電動葫蘆
防爆電動葫蘆

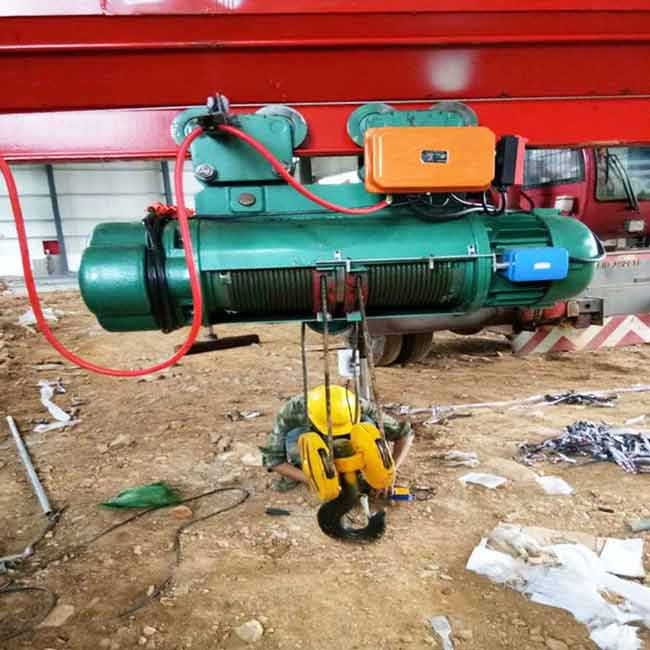

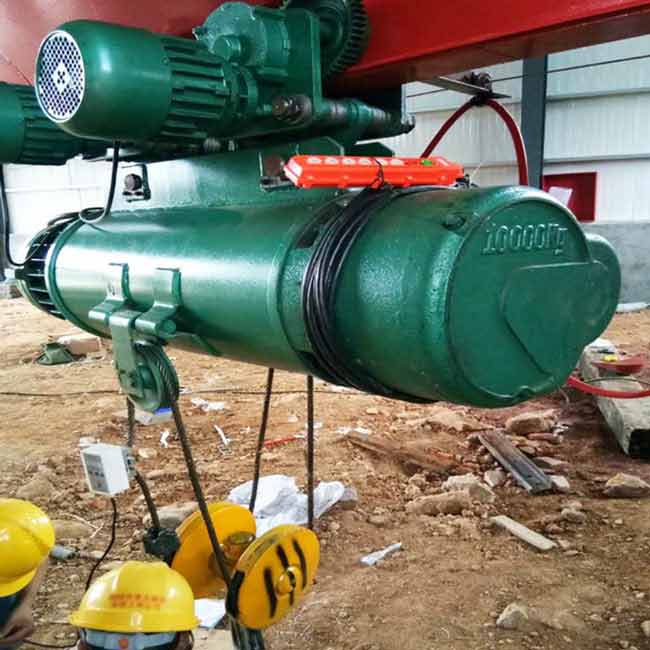

CD10T-30M電動葫蘆價格一覽表，CD1鋼絲繩電動葫蘆運行速度8m/min，純銅電機散熱好，動力足壽命長。電動葫蘆可以在高強度工作場合長時間工作而不觸發熱保護，工作級別M3。采用起升高度限位器，可以防止吊鉤超出限制位置，避免沖頂和鋼絲繩被拉斷等事故，安全系數高。本產品質量由中國人民保險公司(PICC)承保，請放心使用。
Cd10t-30m electric hoist price list [please click free phone] or [click offer] to get. CD1 wire rope electric hoist running speed 8m/min, good heat dissipation of pure copper motor, long power life. Electric hoist can work for a long time in high-intensity working place without triggering thermal protection, working level M3. The use of lifting height limit device, can prevent the hook beyond the limit position, avoid the top and wire rope is pulled off and other accidents, high safety factor. The quality of this product is insured by the people's insurance company of China (PICC).
河北悍象擁有成熟的鍛壓、沖壓和自動焊接設備。成熟的加工技術，保障了CD1鋼絲繩電動葫蘆的產品質量。本產品采用較大起動力矩錐形轉子制動異步電動機，正常使用壽命可達100萬次，無需外加制動器；電機負載持續率為25%，電機采用B級或F級絕緣，電機防護等級IP44/IP54。本品采用三級定軸斜齒輪傳動結構，齒輪和齒輪軸用經過熱處理的合金鋼制成；箱蓋由優質鑄鐵制成，裝配嚴密，密封良好。采用能在緊急情況下切斷主電路，可自由調節的螺桿式起升高度限位器，精度高，上下行程限位，安全耐用。電器元件壽命長，接線使用更可靠。采用磷化處理鋼絲繩，防銹耐腐蝕。36伏低電壓控制手柄，配有急停開關，并有繩操縱和無繩遙控兩種方式。
Hebei han xiang has a mature forging, stamping and automatic welding equipment. Mature processing technology ensures the product quality of CD1 wire rope electric hoist. This product adopts conical rotor braking asynchronous motor with large starting torque, and its normal service life can reach 1 million times, without additional brake; The motor load duration is 25%. The motor is insulated with class B or class F, and the motor protection grade is IP44/IP54. This product adopts three-stage fixed shaft helical gear transmission structure, and the gear and gear shaft are made of heat-treated alloy steel. The case cover is made of high quality cast iron. Adopt screw type lifting height limiter which can cut off main circuit in emergency and can be adjusted freely, high precision, up and down travel limit, safe and durable. Electrical components long life, wiring more reliable. Using phosphating steel wire rope, anti - rust and corrosion. 36 v low voltage control handle with emergency stop switch, rope control and cordless remote control
CD10T-30M電動葫蘆限位器安裝位置在哪?（Where is the installation position of cd10t-30m electric hoist limiter??）
上圖藍色的就是限位器（限位器顏色有很多種），連桿、定位卡子、導繩器、限位器（限位開關），組成了一個鋼絲繩電動葫蘆的限位裝置，四者缺一不可。當然，采用重制限位除外。5噸以下的包括5噸的一般在拉桿右側是上限位，左側是下限位。上限位定位卡子向右移動起升高度越高，反之越低。切勿超過起升高限位值。左側為下限位，向左移動勾頭下降越低距離地面越近，反之越高。四繩噸位較大的葫蘆，上下限位剛好相反，左為上限位，右為下限位。
The blue of the above picture is the limit device (there are many colors of the limit device), connecting rod, positioning clamp, rope guide, limit device (limit switch), which constitute a limit device of wire rope electric hoist, four are indispensable. Except, of course, for reproducing limits. Under 5 tons including 5 tons generally in the right side of the rod is the upper limit, the left is the lower limit. The higher the lifting height is, the lower the lifting height will be. Do not exceed the lifting limit. The left side is the lower limit. The lower the hook head drops, the closer it is to the ground, and vice versa. For the hoist with a large 4-rope tonnage, the upper and lower limit are opposite, the left is the upper limit and the right is the lower limit.
CD10T-30M電動葫蘆潤滑保養工作重要嗎?（Cd10t-30m electric hoist lubrication maintenance work is important?）
潤滑工作是起重葫蘆維護保養工作的主要內容之一。潤滑工作是保證CD10T-30M電動葫蘆正常運轉，延長機件壽命、提高效率及促使安全生產的重要措施之一，其主要作用為：減少電動葫蘆等機械磨損、延長零部件使用壽命；保持電動葫蘆設備良好的運轉性能，如避免銷軸等轉動部位卡死，避免軸承燒壞等；減少摩擦，提高效率，降低動能的消耗；降低摩擦面過熱損壞；防止生銹腐蝕；電動葫蘆密封防塵（干油潤滑的場合）。
Lubrication work is one of the main contents of hoist maintenance. Lubrication is one of the important measures to ensure the normal operation of cd10t-30m electric hoist, extend the service life of parts, improve efficiency and promote safe production. Its main role is to reduce mechanical wear of electric hoist and extend the service life of parts. Keep good running performance of electric hoist equipment, such as avoiding pin shaft and other rotating parts from getting stuck and bearing from burning out. Reduce friction, improve efficiency, reduce the consumption of kinetic energy; Reduce the friction surface overheating damage; Prevent rust and corrosion; Electric hoist sealed dustproof (dry oil lubrication occasions).
CD10T-30M電動葫蘆價格一覽表，請致電，張經理：15703121115(加微信)、郝經理：15703121233(加微信)。發貨期幾天？常規產品3天內發貨，大量貨源。質量怎么樣？ISO質量認證，品質保障，CD1鋼絲繩電動葫蘆滿足多種環境要求,歡迎垂詢。
Cd10t-30m electric hoist price list, please call manager zhang: 15703121115(plus WeChat), manager hao: 15703121233(plus WeChat). How long will the delivery take? Conventional products within 3 days of delivery, a large number of sources. What about the quality? ISO quality certification, quality assurance, CD1 wire rope electric hoist meet a variety of environmental requirements, welcome to inquire.
